1D 2D Wireless Handheld Barcode Scanner IP65 Protection Waterproof

Name: 1D 2D Wireless Handheld Barcode Scanner IP65 Protection Waterproof
Brand: DYscan
Price: 1 USD

Wholesale 1D 2D Wireless Handheld Barcode Scanner IP65 Protection Waterproof from china suppliers

Brand Name : DYscan

Model Number : DS6800B

Certification : CE ROHS FCC IEC

Place of Origin : China

MOQ : 2pcs

Price : Negotiable

Payment Terms : T/T, Western Union,PAYPAL

Supply Ability : 100000pcs/month

Delivery Time : 5-7days

Packaging Details : 56*41*43cm/50pcs /Carton

Scan Type : CMOS

Resolution : 1024*1280

Decoding speed : 65cm/s

Depth of field : 45mm~350mm(Different decoding distance)

Scan Mode : Manual ,Continuous,flashing

Print Contrast Signal : ≥25%

Storage : 350Kb（over 20,000 Product code）

Battery capacity : 2000mAh

Symbologies : 1D /2D

Name : Wireless Barcode Scanner

Contact Now

1D 2D Wireless Handheld Barcode Scanner IP65 Protection Waterproof

Feature

☆ Ergonomic design, comfortable using.

☆ Read all mainstream 1D/2D barcodes in the market easily.

☆ High-performance processor, fast decoding. (3mil)

☆ IP65 protection, waterproof, dustproof, easy to deal with all types of complex environment

☆ Support multiple systems and languages, secondary development.

☆ No need to drive, easy to use, plug and play

Performance

Scan Type	CMOS
CPU	32-bit
Resolution	1024*1280 (1.3 million pixels )
Reading precision	≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed	100CM/S
Depth of field	60mm~1000mm
Scan Mode	Manual , Auto Sense
Prompt mode	LED indicator, buzzer
Field of view	40° 30°*
Scan angle	Test Conditions:CODE39,10mil/0.25mm,PCS90%
	Pitch:±60° Roll: ±360° Skew: ±55°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Wireless communication mode	Synchronization , storage
Wireless transmission distance	2.4GHz,150m ; Bluetooth 30 m (Open distance)
Storage	16Mb(over 10,0000Product code)
Battery capacity	2200mAh
Battery charging time	About 6.5 hours
Continuous working time	≥16 hours
Symbologies	1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded), etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, Aztec,etc.

Physical Parameter

Weight	≈290g(USb)
Dimension	L184.5mm * W73.8.0mm * H93.5mm
Communication Mode	Wireless 2.4G ,Bluetooth 4.2
Interface Type	USB
Power Supply	DC 5V@260mA(work)

Environmental

Operating temperature	-20℃ to 50℃
Storage temperature	-40℃ to 70℃
Humidity	5% to 95%(non-condensing)
IP	IP65
Drop Height	1.8m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp.,
High Temp.	60℃
Low Temp.	-20℃
Transport vibration Test	10H@125RPM

Application of Handheld Barcode Reader

▅ Supermarket

▅ Warehouse

▅ Mobile payment

▅ Retail chain

▅ Courier

▅ Health care

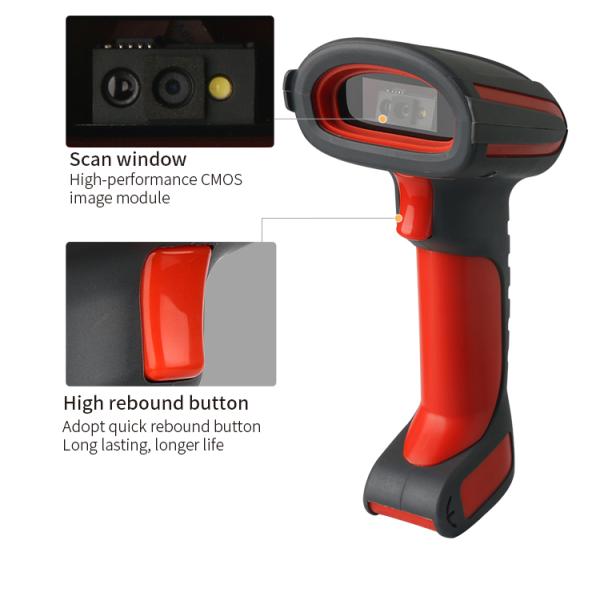

Detail Image

1D 2D Wireless Handheld Barcode Scanner IP65 Protection Waterproof
